400°C Zirconium Oxide Deep Groove Ball Bearing: 6209-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6209-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$320.83
This product has a minimum quantity of 5

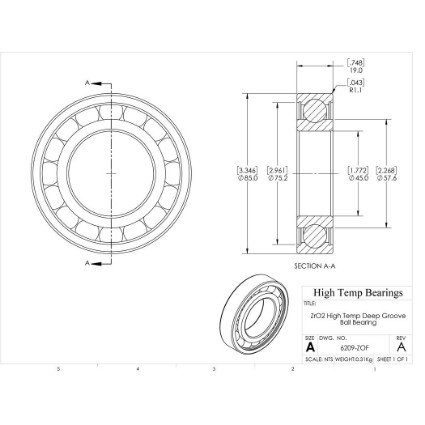

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)45
D (mm)85
B (mm)19
d1 (mm)57.6
D2 (mm)75.2
C (lb)2205
C0 (lb)1241
Nmax (RPM)3864
Weight(lbs)0.67
Code101630
PackageQTY1
UOMEA
SeriesZrO2
C (kN)9.81
C0 (kN)5.52
Ra (mm)1
Da (mm)78
damin (mm)52
kr25
ka0.5
fo14
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
