Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6209-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6209-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed ZrO2 Ball Bearing
$331.10
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

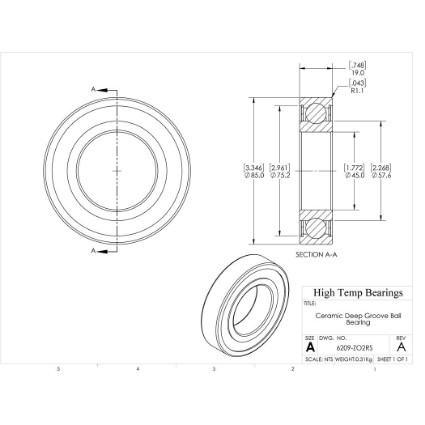

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)45
D (mm)85
B (mm)19
d1 (mm)57.6
D2 (mm)75.2
C (lb)2205
C0 (lb)1241
Nmax (RPM)5520
Weight(lbs)0.67
Code101629
PackageQTY1
UOMEA
C (kN)9.81
C0 (kN)5.52
Ra (mm)1
Da (mm)78
damin (mm)52
kr25
ka0.5
fo14
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
