Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6209-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6209-SN

Deep Groove, Single Row, Ceramic, Open, Si3N4
$562.10

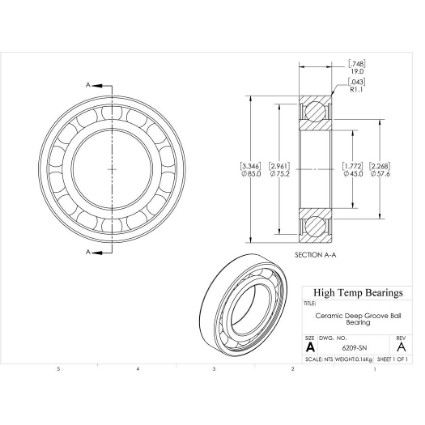

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)45
D (mm)85
B (mm)19
d1 (mm)57.6
D2 (mm)75.2
C (lb)1838
C0 (lb)1141
Nmax (RPM)6440
Weight(lbs)0.36
Code101625
PackageQTY1
UOMEA
C (kN)8.175
C0 (kN)5.075
Ra (mm)1
Da (mm)78
damin (mm)52
kr25
ka0.5
fo14
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
