1200°C Silicon Carbide Deep Groove Ball Bearing: 6209-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6209-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$516.21
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

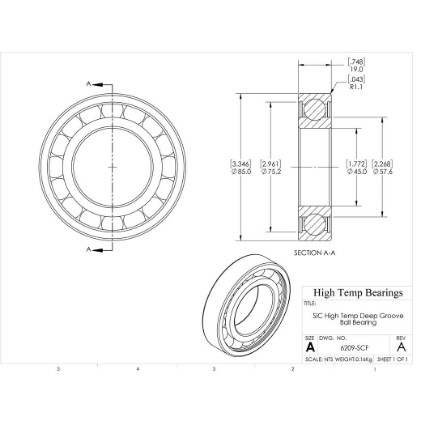

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Shaft Size45mm
D (mm)85
B (mm)19
d1 (mm)57.6
D2 (mm)75.2
C (lb)1470
C0 (lb)913
Nmax (RPM)3864
Weight(lbs)0.36
Code101624
PackageQTY1
UOMEA
Bore (mm)45
C (kN)6.54
C0 (kN)4.06
Ra (mm)1
Da (mm)78
damin (mm)52
kr25
ka0.5
fo14
r (mm)1.1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
MaterialSiC
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Operation above the continuous duty temperature will reuslt in a loss of clearnce and reduce bearing life.
