800°C Silicon Nitride Deep Groove Ball Bearing: 6208-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6208-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$257.44
This product has a minimum quantity of 5

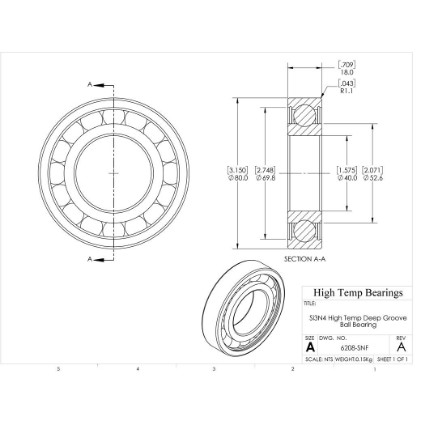

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)40
D (mm)80
B (mm)18
d1 (mm)52.6
D2 (mm)69.8
C (lb)1635
C0 (lb)1000
Nmax (RPM)4900
Weight(lbs)0.32
Code270048
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)7.275
C0 (kN)4.45
Ra (mm)1
Da (mm)73
damin (mm)47
kr25
ka0.5
fo14
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
