1200°C Silicon Carbide Deep Groove Ball Bearing: 6208-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6208-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$272.58
This product has a minimum quantity of 5

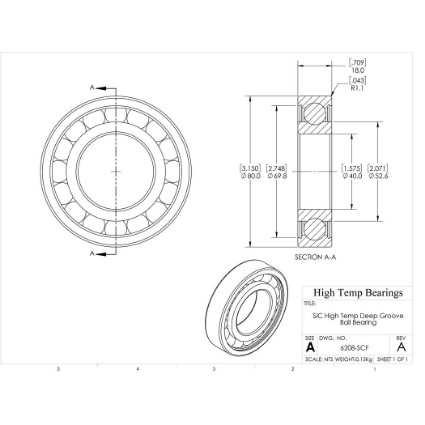

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)40
D (mm)80
B (mm)18
d1 (mm)52.6
D2 (mm)69.8
C (lb)1308
C0 (lb)800
Nmax (RPM)4200
Weight(lbs)0.32
Code270047
PackageQTY1
UOMEA
C (kN)5.82
C0 (kN)3.56
Ra (mm)1
Da (mm)73
damin (mm)47
kr25
ka0.5
fo14
r (mm)1.1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
