Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6208-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6208-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$456.87
This product has a minimum quantity of 3

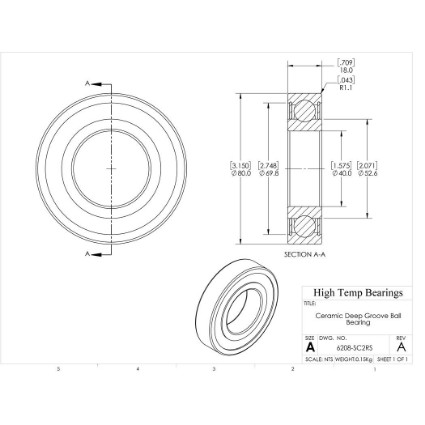

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)40
D (mm)80
B (mm)18
d1 (mm)52.6
D2 (mm)69.8
C (lb)1308
C0 (lb)800
Nmax (RPM)6000
Weight(lbs)0.32
Code101613
PackageQTY1
UOMEA
C (kN)5.82
C0 (kN)3.56
Ra (mm)1
Da (mm)73
damin (mm)47
kr25
ka0.5
fo14
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
