Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6208-SC

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6208-SC

Deep Groove, Single Row, Ceramic, Open SiC Ball Bearing
$456.87
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

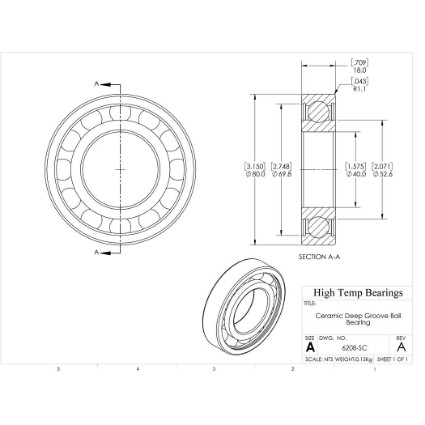

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)40
D (mm)80
B (mm)18
d1 (mm)52.6
D2 (mm)69.8
C (lb)1308
C0 (lb)800
Nmax (RPM)6000
Weight(lbs)0.32
Code101612
PackageQTY1
UOMEA
C (kN)5.82
C0 (kN)3.56
Ra (mm)1
Da (mm)73
damin (mm)47
kr25
ka0.5
fo14
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
