400°C Zirconium Oxide Deep Groove Ball Bearing: 6207-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6207-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$146.30
This product has a minimum quantity of 5

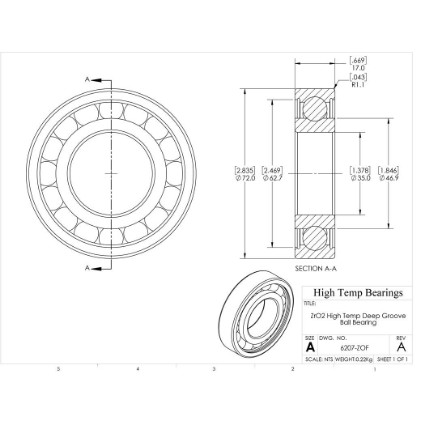

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)35
D (mm)72
B (mm)17
d1 (mm)46.9
D2 (mm)62.7
C (lb)1733
C0 (lb)1039
Nmax (RPM)4620
Weight(lbs)0.48
Code101607
PackageQTY1
UOMEA
SeriesZrO2
C (kN)7.71
C0 (kN)4.62
Ra (mm)1
Da (mm)65
damin (mm)42
kr25
ka0.5
fo14
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
