Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6207-ZO

Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6207-ZO

Deep Groove, Single Row, Ceramic, Naked, ZrO2
$141.17
This product has a minimum quantity of 2

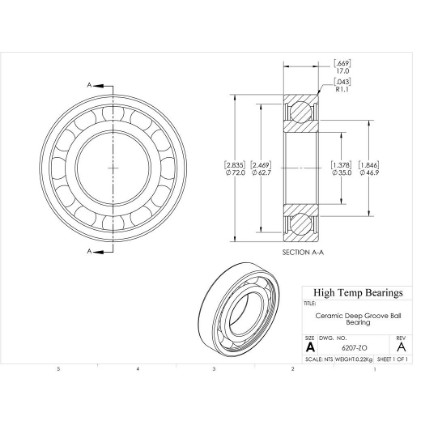

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Bore (mm)35
D (mm)72
B (mm)17
d1 (mm)46.9
D2 (mm)62.7
C (lb)1733
C0 (lb)1039
Nmax (RPM)6600
Weight(lbs)0.48
Code101605
PackageQTY1
UOMEA
C (kN)7.71
C0 (kN)4.62
Ra (mm)1
Da (mm)65
damin (mm)42
kr25
ka0.5
fo14
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
