800°C Silicon Nitride Deep Groove Ball Bearing: 6207-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6207-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$229.08
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

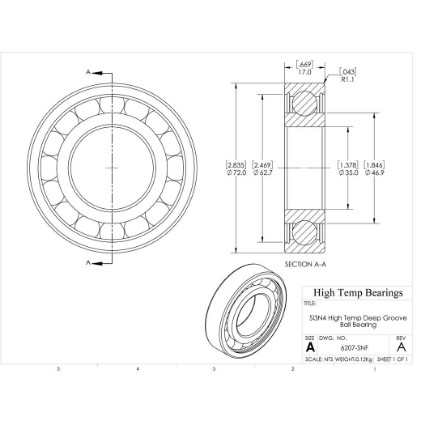

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)35
D (mm)72
B (mm)17
d1 (mm)46.9
D2 (mm)62.7
C (lb)1444
C0 (lb)866
Nmax (RPM)5390
Weight(lbs)0.25
Code101604
PackageQTY1
UOMEA
C (kN)6.425
C0 (kN)3.85
Ra (mm)1
Da (mm)65
damin (mm)42
kr25
ka0.5
fo14
r (mm)1.1
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
