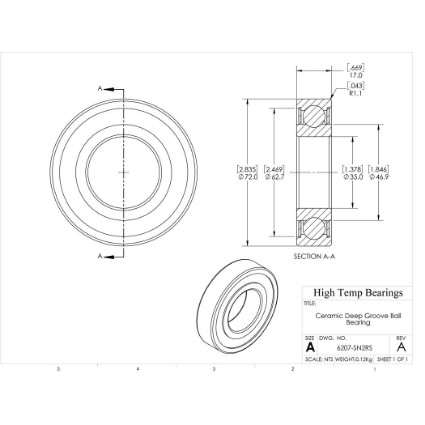

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6207-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6207-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$241.27
CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)35
D (mm)72
B (mm)17
d1 (mm)46.9
D2 (mm)62.7
C (lb)1444
C0 (lb)866
Nmax (RPM)7700
Weight(lbs)0.25
Code101603
PackageQTY1
UOMEA
C (kN)6.425
C0 (kN)3.85
Ra (mm)1
Da (mm)65
damin (mm)42
kr25
ka0.5
fo14
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
