Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6207-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6207-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$305.43
This product has a minimum quantity of 3

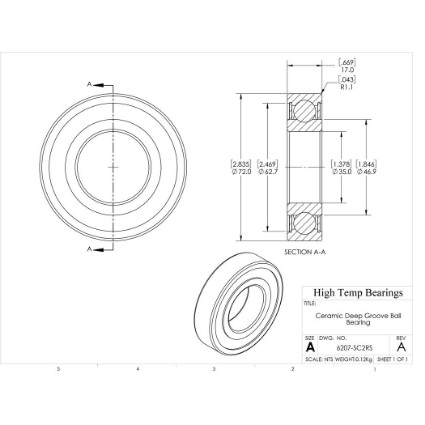

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)35
D (mm)72
B (mm)17
d1 (mm)46.9
D2 (mm)62.7
C (lb)1156
C0 (lb)692
Nmax (RPM)6600
Weight(lbs)0.25
Code101600
PackageQTY1
UOMEA
C (kN)5.14
C0 (kN)3.08
Ra (mm)1
Da (mm)65
damin (mm)42
kr25
ka0.5
fo14
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
