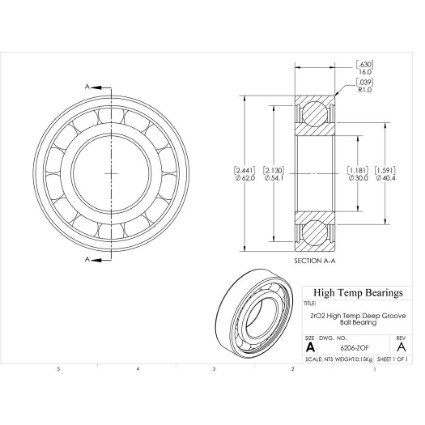

400°C Zirconium Oxide Deep Groove Ball Bearing: 6206-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6206-ZOF

Deep Groove, Full Complement, Single Row, High Temperature 400 °C ZrO2 Ball Bearing
$115.50
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)30
D (mm)62
B (mm)16
d1 (mm)40.4
D2 (mm)54.1
C (lb)1315
C0 (lb)751
Nmax (RPM)5460
Weight(lbs)0.33
Code270046
PackageQTY1
UOMEA
C (kN)5.85
C0 (kN)3.339
Ra (mm)1
Da (mm)56.4
damin (mm)35.6
kr25
ka0.5
fo14
r (mm)1
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesZrO2
