Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6206-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6206-SN

Deep Groove, Single Row, Ceramic, Open Si3N4 Ball Bearing
$197.63
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

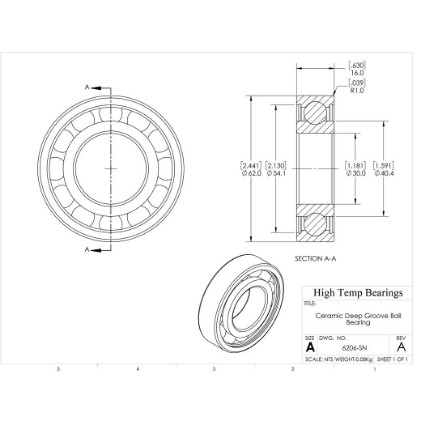

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)30
D (mm)62
B (mm)16
d1 (mm)40.4
D2 (mm)54.1
C (lb)1096
C0 (lb)635
Nmax (RPM)9100
Weight(lbs)0.18
Code101591
PackageQTY1
UOMEA
C (kN)4.875
C0 (kN)2.825
Ra (mm)1
Da (mm)56.4
damin (mm)35.6
kr25
ka0.5
fo14
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
