1200°C Silicon Carbide Deep Groove Ball Bearing: 6206-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6206-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$207.90
This product has a minimum quantity of 5

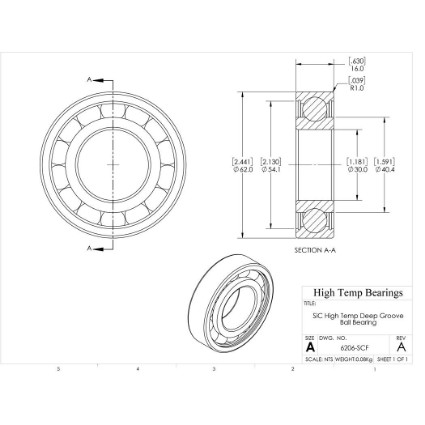

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)30
D (mm)62
B (mm)16
d1 (mm)40.4
D2 (mm)54.1
C (lb)877
C0 (lb)508
Nmax (RPM)5460
Weight(lbs)0.18
Code270044
PackageQTY1
UOMEA
SeriesSiC
C (kN)3.9
C0 (kN)2.26
Ra (mm)1
Da (mm)56.4
damin (mm)35.6
kr25
ka0.5
fo14
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
