800°C Silicon Nitride Deep Groove Ball Bearing: 6205-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6205-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$161.70
This product has a minimum quantity of 5

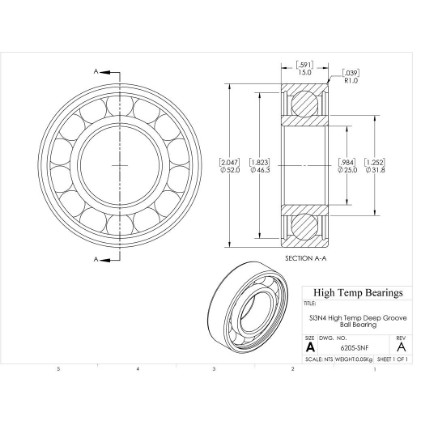

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)25
D (mm)52
B (mm)15
d1 (mm)31.8
D2 (mm)46.3
C (lb)787
C0 (lb)441
Nmax (RPM)7350
Weight(lbs)0.11
Code101581
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)3.5
C0 (kN)1.9625
Ra (mm)1
Da (mm)46.4
damin (mm)30.6
kr25
ka0.5
fo14
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
