1200°C Silicon Carbide Deep Groove Ball Bearing: 6205-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6205-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$171.97
This product has a minimum quantity of 5

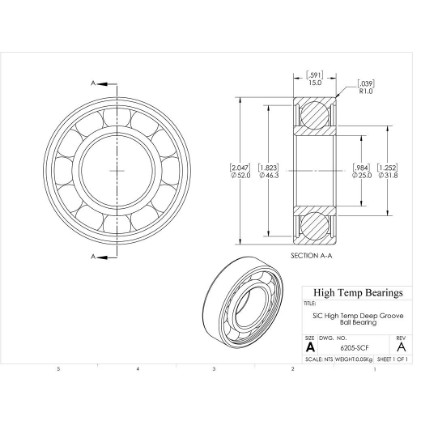

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)25
D (mm)52
B (mm)15
d1 (mm)31.8
D2 (mm)46.3
C (lb)629
C0 (lb)353
Nmax (RPM)6300
Weight(lbs)0.11
Code101578
PackageQTY1
UOMEA
SeriesSiC
C (kN)2.8
C0 (kN)1.57
Ra (mm)1
Da (mm)46.4
damin (mm)30.6
kr25
ka0.5
fo14
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
