Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6205-SC

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6205-SC

Deep Groove, Single Row, Ceramic, Open SiC Ball Bearing
$166.83
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

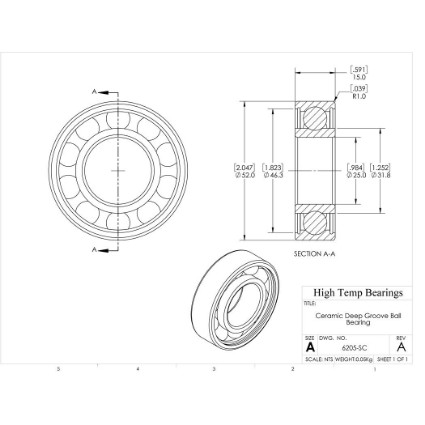

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)25
D (mm)52
B (mm)15
d1 (mm)31.8
D2 (mm)46.3
C (lb)629
C0 (lb)353
Nmax (RPM)9000
Weight(lbs)0.11
Code101576
PackageQTY1
UOMEA
C (kN)2.8
C0 (kN)1.57
Ra (mm)1
Da (mm)46.4
damin (mm)30.6
kr25
ka0.5
fo14
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
