800°C Silicon Nitride Deep Groove Ball Bearing: 6204-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6204-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$126.54
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

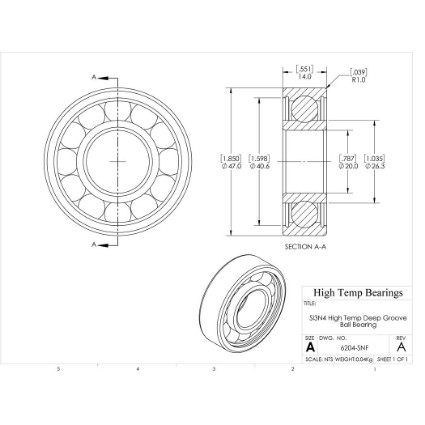

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)20
D (mm)47
B (mm)14
d1 (mm)26.3
D2 (mm)40.6
C (lb)719
C0 (lb)374
Nmax (RPM)8330
Weight(lbs)0.09
Code270042
PackageQTY1
UOMEA
C (kN)3.2
C0 (kN)1.6625
Ra (mm)1
Da (mm)41.4
damin (mm)25.6
kr25
ka0.5
fo12
r (mm)1
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
