1200°C Silicon Carbide Deep Groove Ball Bearing: 6204-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6204-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$133.98
This product has a minimum quantity of 5

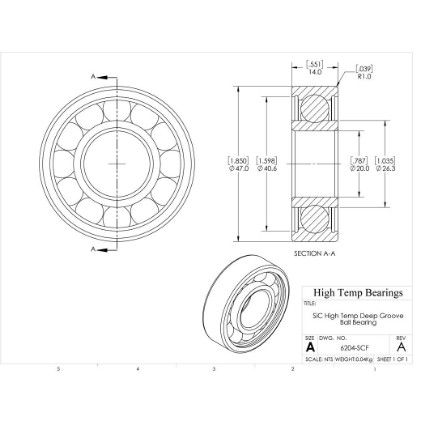

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)20
D (mm)47
B (mm)14
d1 (mm)26.3
D2 (mm)40.6
C (lb)576
C0 (lb)299
Nmax (RPM)7140
Weight(lbs)0.09
Code270041
PackageQTY1
UOMEA
SeriesSiC
C (kN)2.56
C0 (kN)1.33
Ra (mm)1
Da (mm)41.4
damin (mm)25.6
kr25
ka0.5
fo12
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
