Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6204-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6204-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$130.90
This product has a minimum quantity of 5

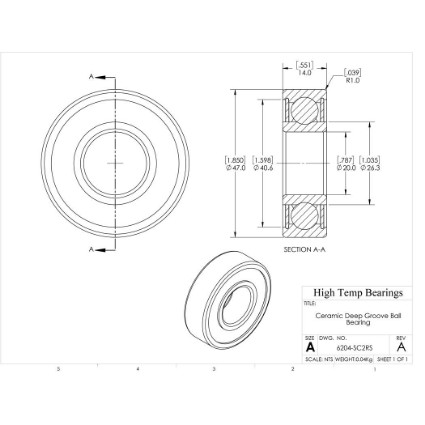

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)20
D (mm)47
B (mm)14
d1 (mm)26.3
D2 (mm)40.6
C (lb)576
C0 (lb)299
Nmax (RPM)10200
Weight(lbs)0.09
Code101567
PackageQTY1
UOMEA
C (kN)2.56
C0 (kN)1.33
Ra (mm)1
Da (mm)41.4
damin (mm)25.6
kr25
ka0.5
fo12
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
