400°C Zirconium Oxide Deep Groove Ball Bearing: 6203-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6203-ZOF

Deep Groove, Full Complement, Single Row, High Temperature 400 °C ZrO2 Ball Bearing
$64.17
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

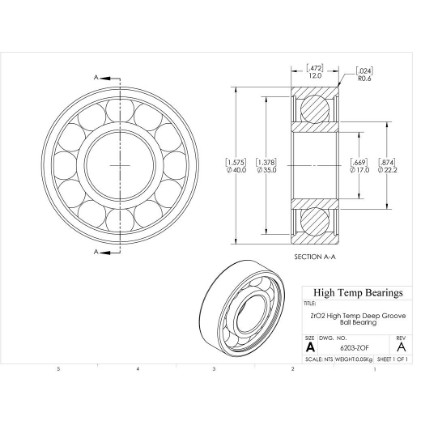

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)17
D (mm)40
B (mm)12
d1 (mm)22.2
D2 (mm)35
C (lb)644
C0 (lb)324
Nmax (RPM)8820
Weight(lbs)0.11
Code270040
PackageQTY1
UOMEA
C (kN)2.865
C0 (kN)1.44
Ra (mm)0.6
Da (mm)35.8
damin (mm)21.2
kr25
ka0.5
fo13
r (mm)0.6
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesZrO2
