Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6203-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6203-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$110.37
This product has a minimum quantity of 2

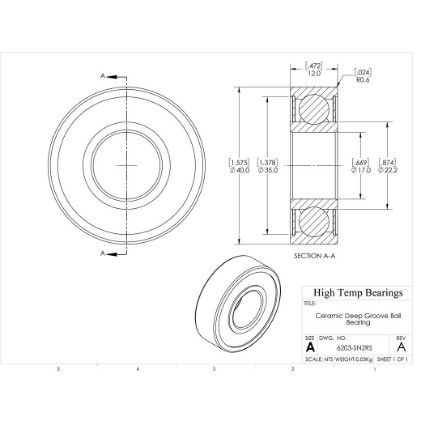

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)17
D (mm)40
B (mm)12
d1 (mm)22.2
D2 (mm)35
C (lb)537
C0 (lb)270
Nmax (RPM)14700
Weight(lbs)0.06
Code101559
PackageQTY1
UOMEA
C (kN)2.388
C0 (kN)1.2
Ra (mm)0.6
Da (mm)35.8
damin (mm)21.2
kr25
ka0.5
fo13
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
