Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6203-SC

Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6203-SC

Deep Groove, Single Row, Ceramic, Naked, SiC
$120.64
This product has a minimum quantity of 5

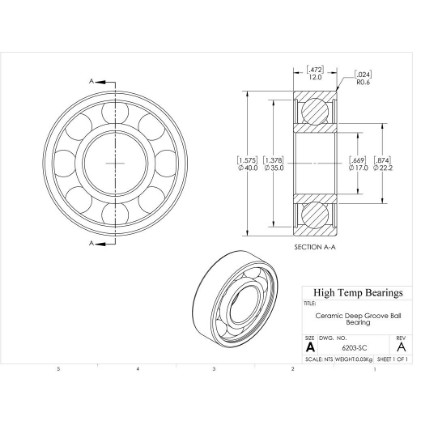

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)17
D (mm)40
B (mm)12
d1 (mm)22.2
D2 (mm)35
C (lb)429
C0 (lb)216
Nmax (RPM)12600
Weight(lbs)0.06
Code101555
PackageQTY1
UOMEA
C (kN)1.91
C0 (kN)0.96
Ra (mm)0.6
Da (mm)35.8
damin (mm)21.2
kr25
ka0.5
fo13
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
