800°C Silicon Nitride Deep Groove Ball Bearing: 6202-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6202-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$97.54
This product has a minimum quantity of 5

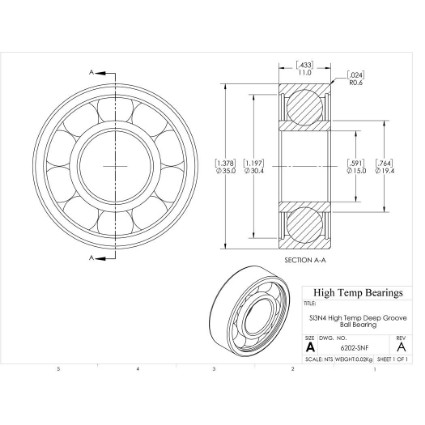

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)15
D (mm)35
B (mm)11
d1 (mm)19.4
D2 (mm)30.4
C (lb)430
C0 (lb)211
Nmax (RPM)11760
Weight(lbs)0.04
Code270037
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)1.913
C0 (kN)0.938
Ra (mm)0.6
Da (mm)30.8
damin (mm)19.2
kr25
ka0.5
fo13
r (mm)0.6
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
