Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6202-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6202-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$97.54
This product has a minimum quantity of 2

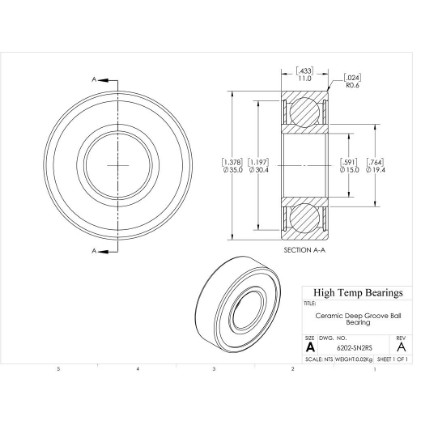

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)15
D (mm)35
B (mm)11
d1 (mm)19.4
D2 (mm)30.4
C (lb)430
C0 (lb)211
Nmax (RPM)16800
Weight(lbs)0.04
Code101546
PackageQTY1
UOMEA
C (kN)1.913
C0 (kN)0.938
Ra (mm)0.6
Da (mm)30.8
damin (mm)19.2
kr25
ka0.5
fo13
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
