1200°C Silicon Carbide Deep Groove Ball Bearing: 6202-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6202-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$130.35
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

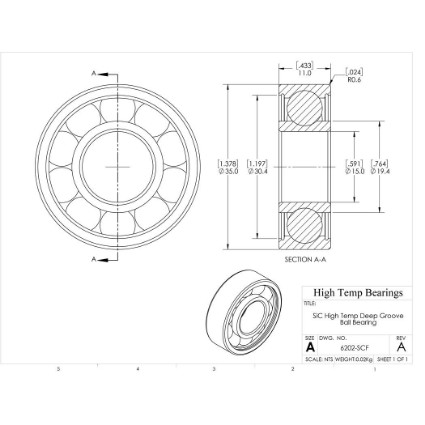

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Shaft Size15mm
D (mm)35
B (mm)11
d1 (mm)19.4
D2 (mm)30.4
C (lb)344
C0 (lb)169
Nmax (RPM)10080
Weight(lbs)0.04
Code101544
PackageQTY1
UOMEA
Bore (mm)15
C (kN)1.53
C0 (kN)0.75
Ra (mm)0.6
Da (mm)30.8
damin (mm)19.2
kr25
ka0.5
fo13
r (mm)0.6
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
MaterialSiC
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Operation above the continuous duty temperature will reuslt in a loss of clearnce and reduce bearing life.
