Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6202-SC

Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6202-SC

Deep Groove, Single Row, Ceramic, Naked, SiC
$102.67
This product has a minimum quantity of 5

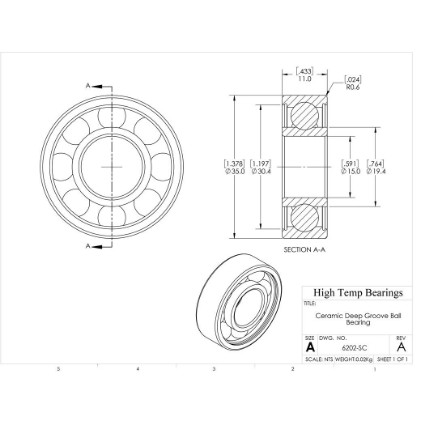

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)15
D (mm)35
B (mm)11
d1 (mm)19.4
D2 (mm)30.4
C (lb)344
C0 (lb)169
Nmax (RPM)14400
Weight(lbs)0.04
Code101542
PackageQTY1
UOMEA
C (kN)1.53
C0 (kN)0.75
Ra (mm)0.6
Da (mm)30.8
damin (mm)19.2
kr25
ka0.5
fo13
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
