400°C Zirconium Oxide Deep Groove Ball Bearing: 6201-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6201-ZOF

Deep Groove, Full Complement, Single Row, High Temperature 400 °C ZrO2 Ball Bearing
$51.34
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

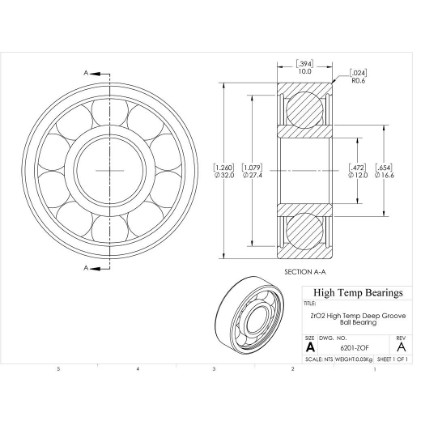

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)12
D (mm)32
B (mm)10
d1 (mm)16.6
D2 (mm)27.4
C (lb)459
C0 (lb)206
Nmax (RPM)11340
Weight(lbs)0.06
Code270036
PackageQTY1
UOMEA
C (kN)2.04
C0 (kN)0.915
Ra (mm)0.6
Da (mm)27.8
damin (mm)16.2
kr25
ka0.25
fo12
r (mm)0.6
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesZrO2
