Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6201-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6201-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$51.34
This product has a minimum quantity of 3

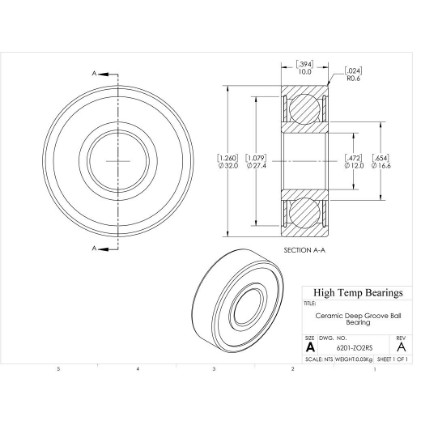

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)12
D (mm)32
B (mm)10
d1 (mm)16.6
D2 (mm)27.4
C (lb)459
C0 (lb)206
Nmax (RPM)16200
Weight(lbs)0.06
Code101536
PackageQTY1
UOMEA
C (kN)2.04
C0 (kN)0.915
Ra (mm)0.6
Da (mm)27.8
damin (mm)16.2
kr25
ka0.25
fo12
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
