800°C Silicon Nitride Deep Groove Ball Bearing: 6201-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6201-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$80.35
This product has a minimum quantity of 5

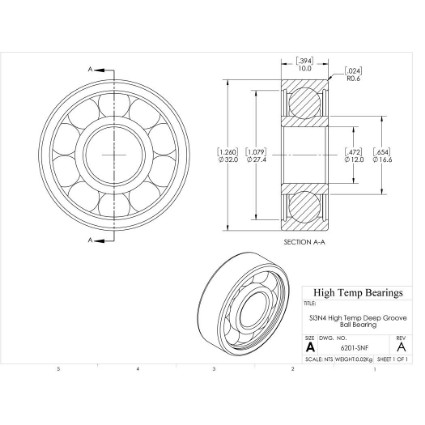

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)12
D (mm)32
B (mm)10
d1 (mm)16.6
D2 (mm)27.4
C (lb)382
C0 (lb)172
Nmax (RPM)13230
Weight(lbs)0.03
Code101534
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)1.7
C0 (kN)0.763
Ra (mm)0.6
Da (mm)27.8
damin (mm)16.2
kr25
ka0.25
fo12
r (mm)0.6
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
