Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6201-SN

Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6201-SN

Deep Groove, Single Row, Ceramic, Naked, Si3N4
$84.70
This product has a minimum quantity of 2

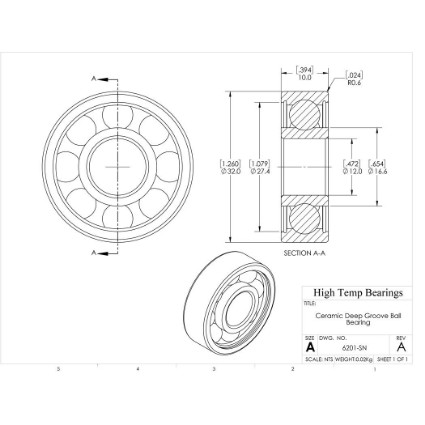

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)12
D (mm)32
B (mm)10
d1 (mm)16.6
D2 (mm)27.4
C (lb)382
C0 (lb)172
Nmax (RPM)18900
Weight(lbs)0.03
Code101532
PackageQTY1
UOMEA
C (kN)1.7
C0 (kN)0.763
Ra (mm)0.6
Da (mm)27.8
damin (mm)16.2
kr25
ka0.25
fo12
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
