1200°C Silicon Carbide Deep Groove Ball Bearing: 6201-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6201-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$87.28
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

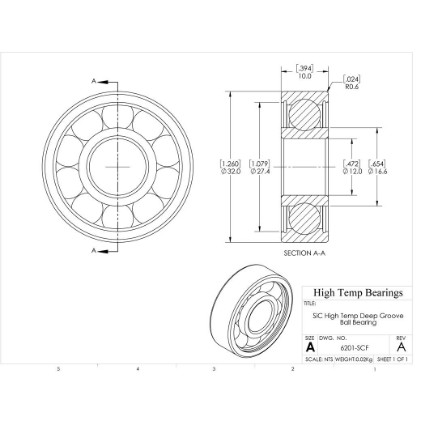

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)12
D (mm)32
B (mm)10
d1 (mm)16.6
D2 (mm)27.4
C (lb)306
C0 (lb)137
Nmax (RPM)11340
Weight(lbs)0.03
Code101531
PackageQTY1
UOMEA
C (kN)1.36
C0 (kN)0.61
Ra (mm)0.6
Da (mm)27.8
damin (mm)16.2
kr25
ka0.25
fo12
r (mm)0.6
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
