Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6201-SC

Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6201-SC

Deep Groove, Single Row, Ceramic, Naked, SiC
$89.84
This product has a minimum quantity of 5

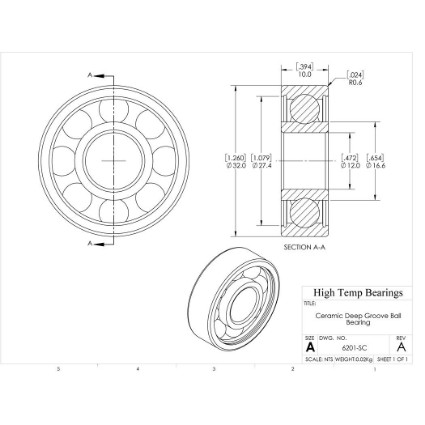

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)12
D (mm)32
B (mm)10
d1 (mm)16.6
D2 (mm)27.4
C (lb)306
C0 (lb)137
Nmax (RPM)16200
Weight(lbs)0.03
Code101529
PackageQTY1
UOMEA
C (kN)1.36
C0 (kN)0.61
Ra (mm)0.6
Da (mm)27.8
damin (mm)16.2
kr25
ka0.25
fo12
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
