Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6200-ZO

Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6200-ZO

Deep Groove, Single Row, Ceramic, Naked, ZrO2
$38.50
This product has a minimum quantity of 3

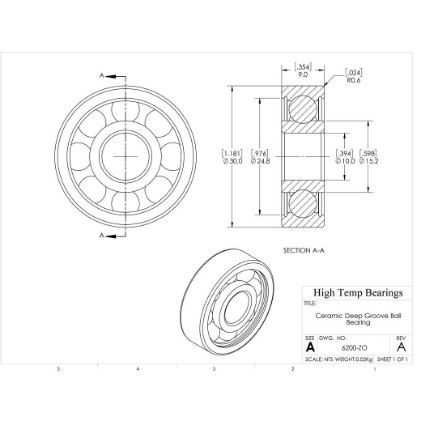

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Bore (mm)10
D (mm)30
B (mm)9
d1 (mm)15.2
D2 (mm)24.8
C (lb)344
C0 (lb)162
Nmax (RPM)17400
Weight(lbs)0.05
Code101523
PackageQTY3
UOMEA
C (kN)1.53
C0 (kN)0.72
Ra (mm)0.6
Da (mm)25.8
damin (mm)14.2
kr25
ka0.25
fo13
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
