Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6200-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6200-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$71.87
This product has a minimum quantity of 2

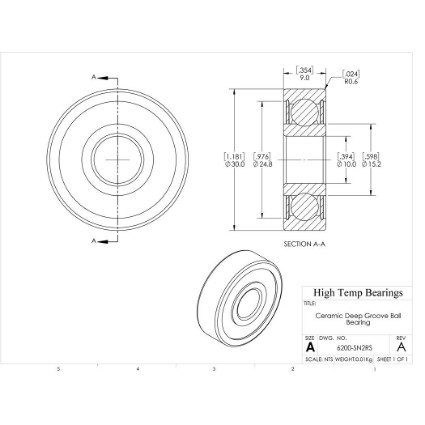

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)10
D (mm)30
B (mm)9
d1 (mm)15.2
D2 (mm)24.8
C (lb)287
C0 (lb)135
Nmax (RPM)20300
Weight(lbs)0.03
Code101522
PackageQTY1
UOMEA
C (kN)1.275
C0 (kN)0.6
Ra (mm)0.6
Da (mm)25.8
damin (mm)14.2
kr25
ka0.25
fo13
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
