1200°C Silicon Carbide Deep Groove Ball Bearing: 6200-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6200-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$73.92
This product has a minimum quantity of 5

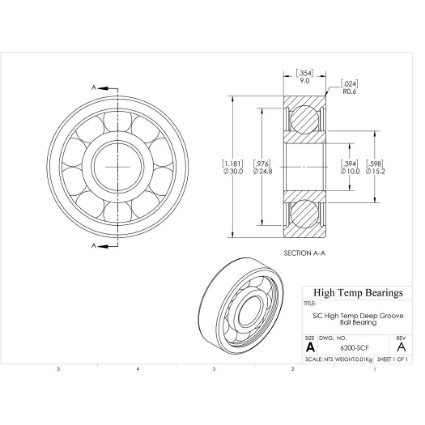

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)10
D (mm)30
B (mm)9
d1 (mm)15.2
D2 (mm)24.8
C (lb)229
C0 (lb)108
Nmax (RPM)12180
Weight(lbs)0.03
Code270033
PackageQTY1
UOMEA
SeriesSiC
C (kN)1.02
C0 (kN)0.48
Ra (mm)0.6
Da (mm)25.8
damin (mm)14.2
kr25
ka0.25
fo13
r (mm)0.6
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
