Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of 95mm 61819 Deep Groove Open Ball Bearing

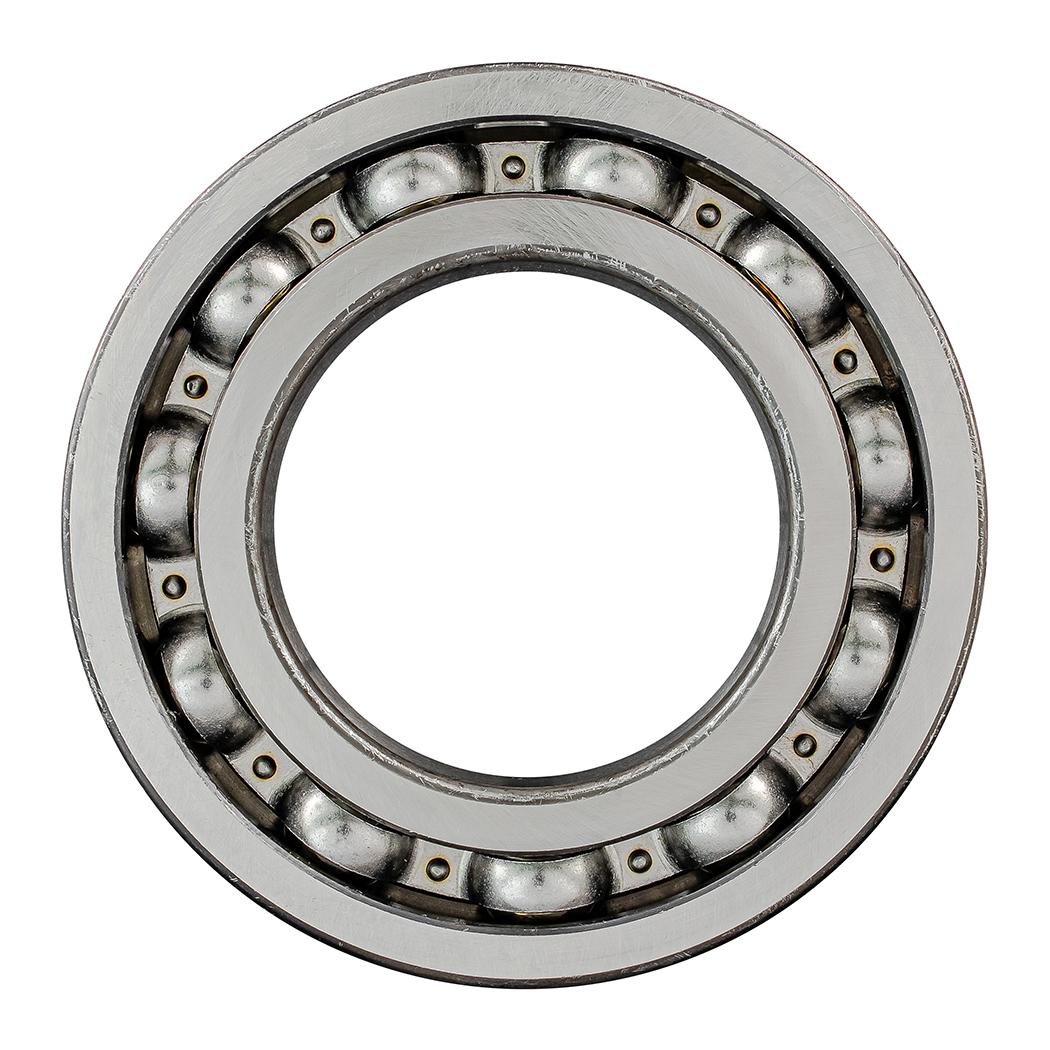

Deep Groove, Single Row, Open Ball Bearing
$313.20

checkbox icon This item typically ship in 1-4 weeks.

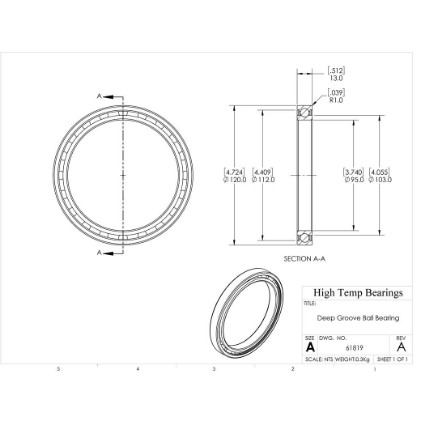

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction for typical industrial applications.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code200541
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series61800
Construction248F Open
DutyStandard
SealsNone
Shaft Size95mm
Material52100

Dimensions

Attribute nameAttribute value
Bore (mm)95
D (mm)120
B (mm)13
r (mm)1
D2 (mm)112
d1 (mm)103

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)1
Da (mm)115
damin (mm)99.6

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed11000
Nmax (RPM)Limiting speed6700
krMinimum radial load factor15
kaMinimum axial load factor0.25
foCalculation factor17
C (lb)Dynamic load capacity4474
C0 (lb)Static load capacity5126
Pu (lb)Fatigue load limit209

Mass

Attribute nameAttribute value
Weight(lbs)0.66

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
