Large Back to Back Double Row Tapered Bearing
RFQ

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD

Specifications:

Description

This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly. The bearing construction can be customized to meet specific technical requirements.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code410227
Shaft Size260mm
SealsNone
ConstructionDouble Row Back to Back
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

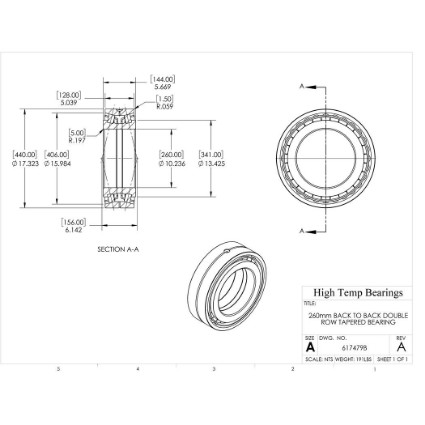

Dimensions

Attribute nameAttribute value
Bore (mm)260
D (mm)440
B (mm)144
d1 (mm)341
P (mm)128
r1-r2 (mm)5
r3-r4 (mm)1.5
a (mm)156
D1 (mm)406

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic load capacity448271
C0 (lb)Static load capacity775595
Pu (lb)Fatigue load limit68567
eLimiting value0.37
Y0Calculation factor1.8
kThrust factor1.56
Y1Calculation factor1.8
Y2Calculation factor2.7
CF (lbs)Comparitive radial load rating110157
Cfa (lbs)Comparitive axial load rating40241

Mass

Attribute nameAttribute value
Weight(lbs)191

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
