Deep Groove, Single Row, Sealed Ball Bearing
$9.99

checkbox icon This item typically ship in 1-4 weeks.

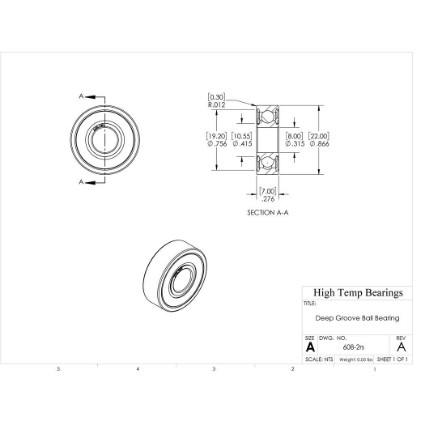

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction for typical industrial applications. Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings. Operation above 180°F will significantly shorten the life of standard sealed bearings.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code102276
Shaft Size8mm
PackageQTYPackage Quantity10
UOMUnit of MeasureTUBE
Series600
DutyMiniature
SealsSeals
Construction248F Seals
Material52100

Dimensions

Attribute nameAttribute value
Bore (mm)8
D (mm)22
B (mm)7
r (mm)0.3
D2 (mm)19.2
d1 (mm)10.55

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)0.3
Da (mm)20
damin (mm)10

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic load capacity776
C0 (lb)Static load capacity308
Pu (lb)Fatigue load limit12.8
Nmax (RPM)Limiting speed22000
krMinimum radial load factor0.025
foCalculation factor12

Mass

Attribute nameAttribute value
Weight(lbs)0.03

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
