Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6020-ZO

Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6020-ZO

Deep Groove, Single Row, Ceramic, Naked, ZrO2
$1,894.19
This product has a minimum quantity of 3

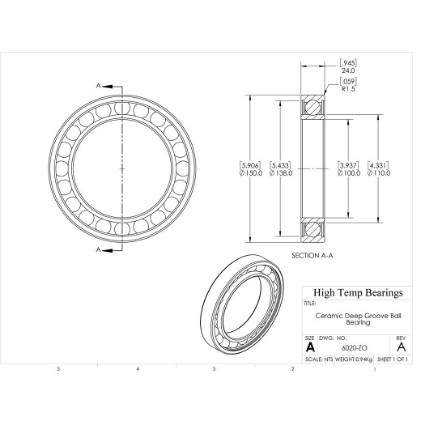

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Bore (mm)100
D (mm)150
B (mm)24
d1 (mm)110
D2 (mm)138
C (lb)4060
C0 (lb)3655
Nmax (RPM)3180
Weight(lbs)2.07
Code101437
PackageQTY1
UOMEA
C (kN)18.06
C0 (kN)16.26
Ra (mm)1.5
Da (mm)143
damin (mm)107
kr25
ka0.25
fo16
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
