Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6020-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6020-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$3,408.50
This product has a minimum quantity of 3

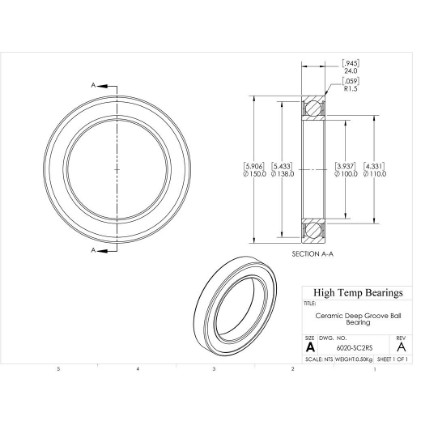

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)100
D (mm)150
B (mm)24
d1 (mm)110
D2 (mm)138
C (lb)2707
C0 (lb)2437
Nmax (RPM)3180
Weight(lbs)1.1
Code101432
PackageQTY1
UOMEA
C (kN)12.04
C0 (kN)10.84
Ra (mm)1.5
Da (mm)143
damin (mm)107
kr25
ka0.25
fo16
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
