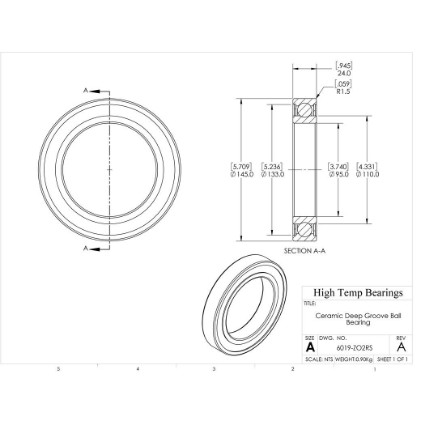

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6019-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6019-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$1,765.85
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)95
D (mm)145
B (mm)24
d1 (mm)110
D2 (mm)133
C (lb)4074
C0 (lb)3635
Nmax (RPM)3180
Weight(lbs)1.98
Code101424
PackageQTY1
UOMEA
C (kN)18.12
C0 (kN)16.17
Ra (mm)1.5
Da (mm)138
damin (mm)102
kr25
ka0.25
fo16
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
