Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6019-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6019-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$2,481.95
This product has a minimum quantity of 3

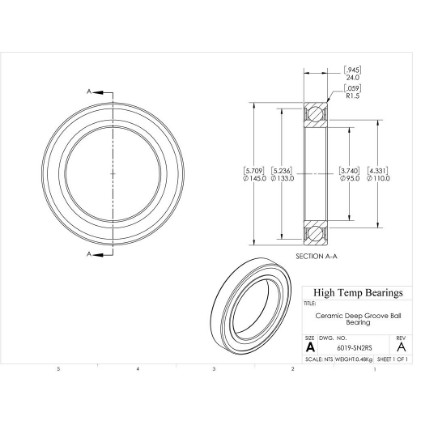

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)95
D (mm)145
B (mm)24
d1 (mm)110
D2 (mm)133
C (lb)3395
C0 (lb)3029
Nmax (RPM)3710
Weight(lbs)1.06
Code101421
PackageQTY1
UOMEA
C (kN)15.1
C0 (kN)13.475
Ra (mm)1.5
Da (mm)138
damin (mm)102
kr25
ka0.25
fo16
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
