1200°C Silicon Carbide Deep Groove Ball Bearing: 6019-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6019-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$3,028.64
This product has a minimum quantity of 5

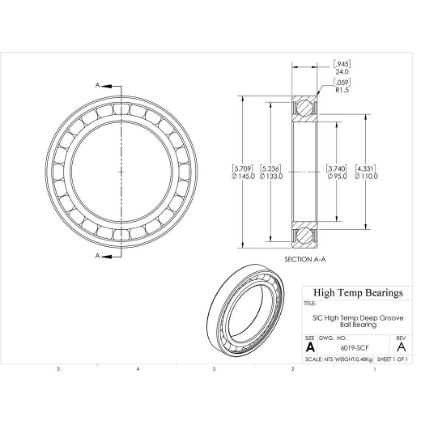

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)95
D (mm)145
B (mm)24
d1 (mm)110
D2 (mm)133
C (lb)2716
C0 (lb)2423
Nmax (RPM)2226
Weight(lbs)1.06
Code101419
PackageQTY1
UOMEA
SeriesSiC
C (kN)12.08
C0 (kN)10.78
Ra (mm)1.5
Da (mm)138
damin (mm)102
kr25
ka0.25
fo16
r (mm)1.5
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
