Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6019-SC

Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6019-SC

Deep Groove, Single Row, Ceramic, Naked, SiC
$3,177.51
This product has a minimum quantity of 3

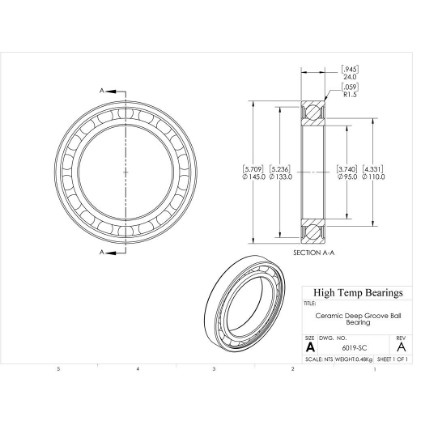

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)95
D (mm)145
B (mm)24
d1 (mm)110
D2 (mm)133
C (lb)2716
C0 (lb)2423
Nmax (RPM)3180
Weight(lbs)1.06
Code101417
PackageQTY1
UOMEA
C (kN)12.08
C0 (kN)10.78
Ra (mm)1.5
Da (mm)138
damin (mm)102
kr25
ka0.25
fo16
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
