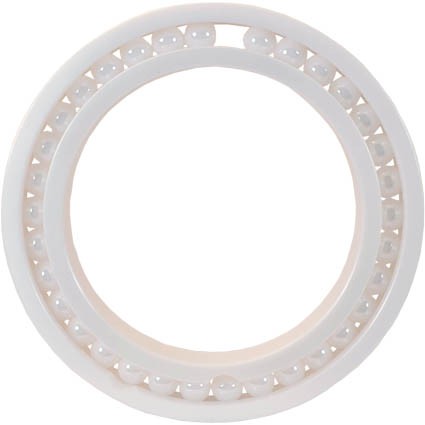

400°C Zirconium Oxide Deep Groove Ball Bearing: 6018-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6018-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$1,460.43
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)90
D (mm)140
B (mm)24
d1 (mm)106
D2 (mm)128
C (lb)3925
C0 (lb)3352
Nmax (RPM)2352
Weight(lbs)1.92
Code101411
PackageQTY1
UOMEA
SeriesZrO2
C (kN)17.46
C0 (kN)14.91
Ra (mm)1.5
Da (mm)133
damin (mm)97
kr25
ka0.25
fo16
r (mm)1.5
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
