800°C Silicon Nitride Deep Groove Ball Bearing: 6018-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6018-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$2,482.72
This product has a minimum quantity of 3

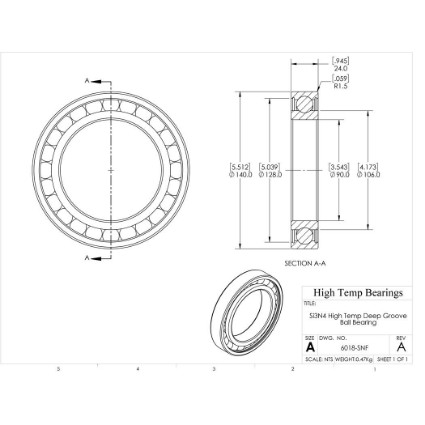

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)90
D (mm)140
B (mm)24
d1 (mm)106
D2 (mm)128
C (lb)3271
C0 (lb)2793
Nmax (RPM)2744
Weight(lbs)1.03
Code101408
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)14.55
C0 (kN)12.425
Ra (mm)1.5
Da (mm)133
damin (mm)97
kr25
ka0.25
fo16
r (mm)1.5
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
