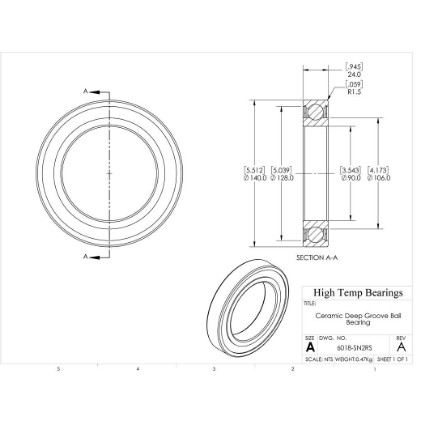

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6018-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6018-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$2,120.05
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)90
D (mm)140
B (mm)24
d1 (mm)106
D2 (mm)128
C (lb)3271
C0 (lb)2793
Nmax (RPM)3920
Weight(lbs)1.03
Code101407
PackageQTY1
UOMEA
C (kN)14.55
C0 (kN)12.425
Ra (mm)1.5
Da (mm)133
damin (mm)97
kr25
ka0.25
fo16
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
